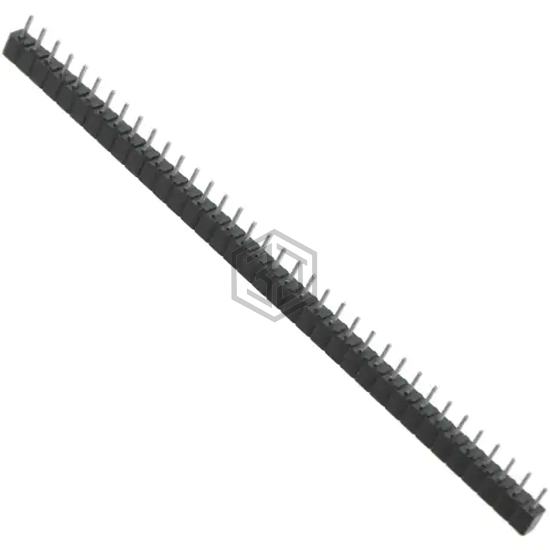

CONN RCPT 36POS 0.1 TIN-LEAD PCB
929984-01-36 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by 3M. CONN RCPT 36POS 0.1 TIN-LEAD PCB. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating 1000V, current rating (amps) 1A.
In Stock: 441
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Forked |
| Style | Board to Board |
| Number of Positions | 36 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.150" (3.81mm) |
| Contact Length - Post | 0.125" (3.18mm) |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin-Lead |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 1A |
| Voltage Rating | 1000V |
