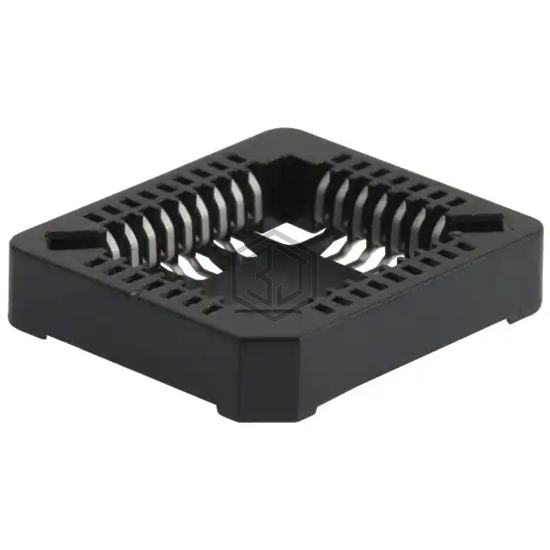

CONN SOCKET PLCC 32POS TIN
8432-21B1-RK-TP is a Sockets for ICs, Transistors manufactured by 3M. CONN SOCKET PLCC 32POS TIN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, housing material Polybutylene Terephthalate (PBT), Glass Filled, termination Solder.
In Stock: 1,569
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | PLCC |
| Number of Positions or Pins (Grid) | 32 (2 x 7, 2 x 9) |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 160.0µin (4.06µm) |
| Contact Material - Mating | Copper Alloy |
| Mounting Type | Surface Mount |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.050" (1.27mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 160.0µin (4.06µm) |
| Contact Material - Post | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Operating Temperature | -40°C ~ 105°C |
