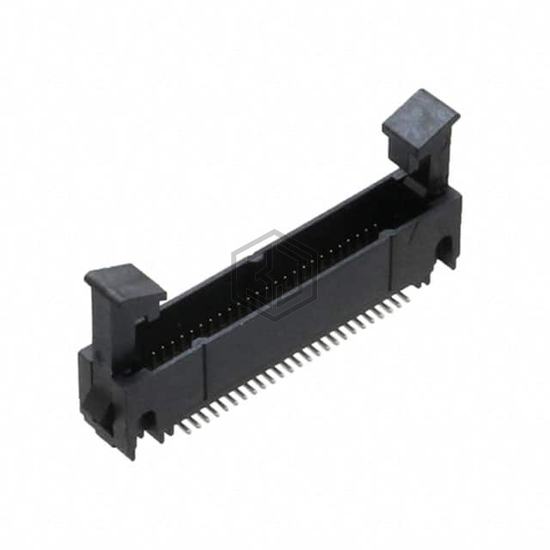

CONN HEADER SMD 50POS 1.27MM
81050-660C01-RB is a Rectangular Connectors - Headers, Male Pins manufactured by 3M. CONN HEADER SMD 50POS 1.27MM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, contact material Copper Alloy, current rating (amps) 0.75A.
In Stock: 400
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Lock/Eject Hooks, Long |
| Contact Length - Mating | 0.140" (3.56mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.405" (10.29mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | - |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 0.75A |
| Voltage Rating | - |
Submit your RFQ for 81050-660C01-RB and get a quote within 24 hours.
