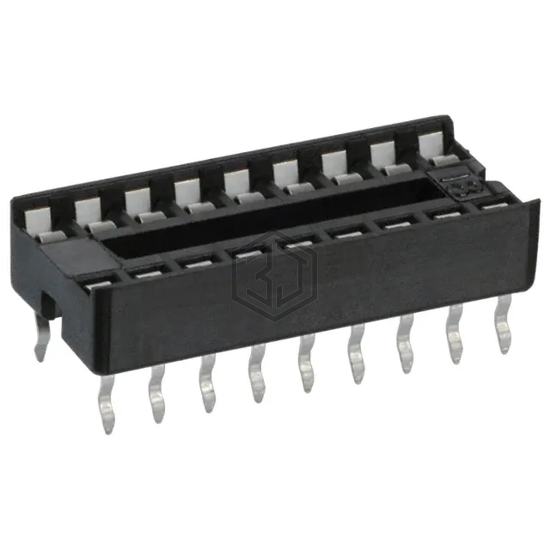

CONN IC DIP SOCKET 18POS TIN
4818-3004-CP is a Sockets for ICs, Transistors manufactured by 3M. CONN IC DIP SOCKET 18POS TIN. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, housing material Polyester, Glass Filled, termination Solder.
In Stock: 7,670
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 18 (2 x 9) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 35.4µin (0.90µm) |
| Contact Material - Mating | Phosphor Bronze |
| Mounting Type | Through Hole |
| Features | Open Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 35.0µin (0.90µm) |
| Contact Material - Post | Phosphor Bronze |
| Housing Material | Polyester, Glass Filled |
| Operating Temperature | -25°C ~ 85°C |
Submit your RFQ for 4818-3004-CP and get a quote within 24 hours.
