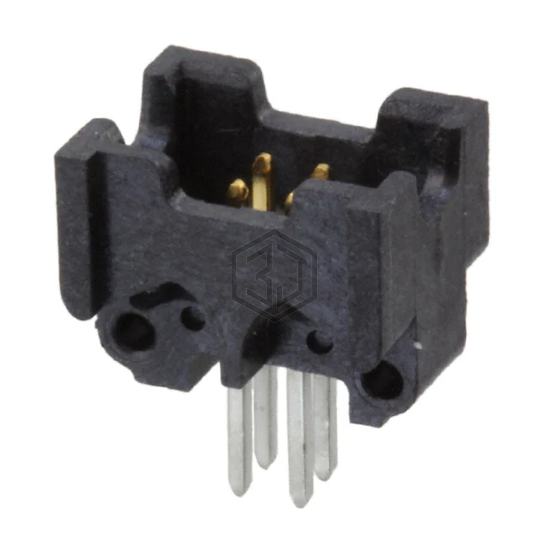

CONN HEADER VERT 4POS 1.27MM
45204-600230 is a Rectangular Connectors - Headers, Male Pins manufactured by 3M. CONN HEADER VERT 4POS 1.27MM. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 125°C, voltage rating 125V, contact material Copper Alloy.
In Stock: 349
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | 0.094" (2.40mm) |
| Overall Contact Length | - |
| Insulation Height | 0.222" (5.65mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Keying Slot |
| Operating Temperature | -65°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | - |
| Current Rating (Amps) | 1A |
| Voltage Rating | 125V |
Submit your RFQ for 45204-600230 and get a quote within 24 hours.
