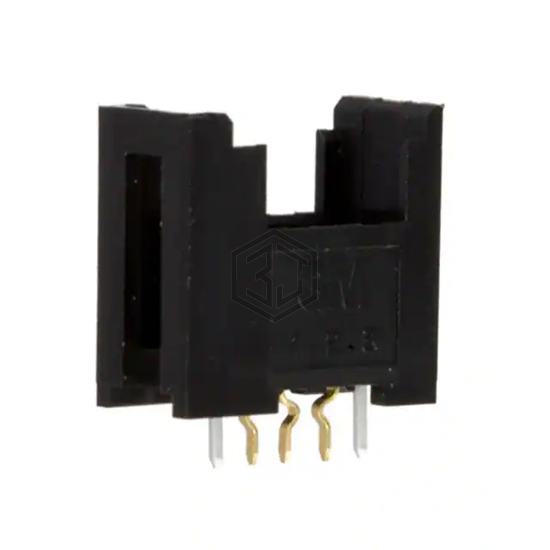

CONN RCPT 3POS 0.079 GOLD PCB
37203-62B3-003PL is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by 3M. CONN RCPT 3POS 0.079 GOLD PCB. Key specifications: mounting type Through Hole, voltage rating 32V, current rating (amps) 3A, termination Kinked Pin, Solder.
In Stock: 12,814
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Cable/Wire |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Insulation Color | Black |
| Insulation Height | 0.512" (13.00mm) |
| Contact Length - Post | 0.102" (2.60mm) |
| Operating Temperature | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Guide |
| Current Rating (Amps) | 3A |
| Voltage Rating | 32V |
Submit your RFQ for 37203-62B3-003PL and get a quote within 24 hours.
