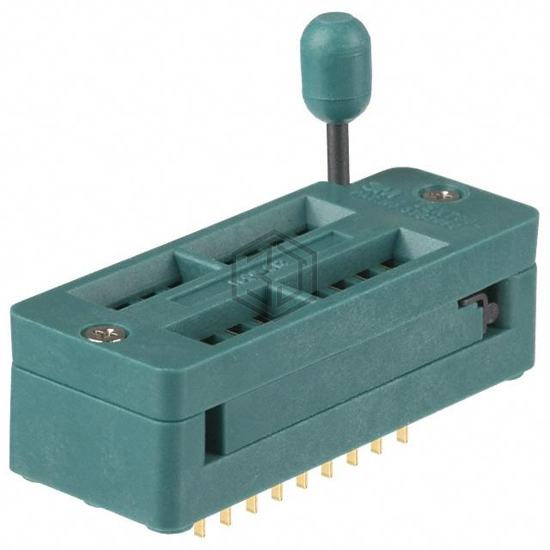

CONN IC DIP SOCKET ZIF 18POS GLD
218-3341-00-0602J is a Sockets for ICs, Transistors manufactured by 3M. CONN IC DIP SOCKET ZIF 18POS GLD. Key specifications: mounting type Connector, operating temperature -55°C ~ 125°C, housing material Polysulfone (PSU), Glass Filled, termination Press-Fit.
In Stock: 13
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DIP, ZIF (ZIP), 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 18 (2 x 9) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Connector |
| Features | Closed Frame |
| Termination | Press-Fit |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Material - Post | Beryllium Copper |
| Housing Material | Polysulfone (PSU), Glass Filled |
| Operating Temperature | -55°C ~ 125°C |
Submit your RFQ for 218-3341-00-0602J and get a quote within 24 hours.
