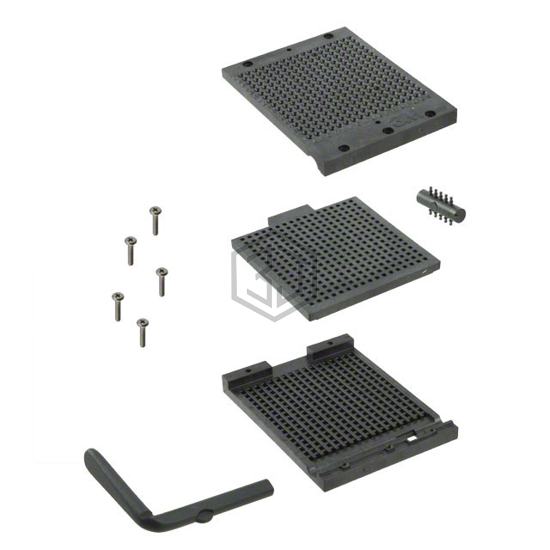

CONN SOCKET PGA ZIF 289POS GOLD
200-6317-9UN-1900 is a Sockets for ICs, Transistors manufactured by 3M. CONN SOCKET PGA ZIF 289POS GOLD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, housing material Polyethersulfone (PES), termination Solder.
In Stock: 28
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | PGA, ZIF (ZIP) |
| Number of Positions or Pins (Grid) | 289 (17 x 17) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | - |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Material - Post | Beryllium Copper |
| Housing Material | Polyethersulfone (PES) |
| Operating Temperature | -55°C ~ 150°C |
