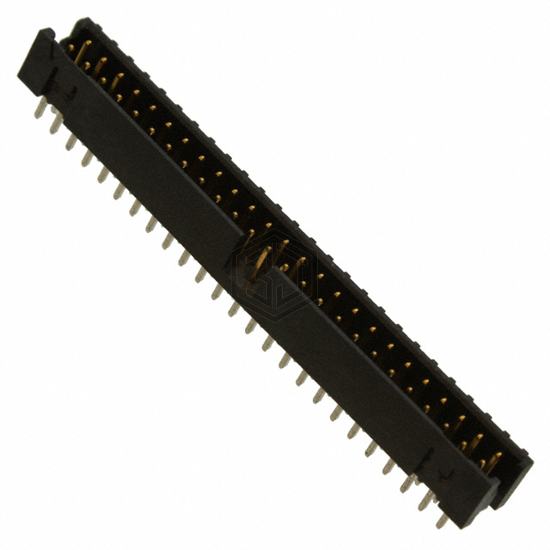

CONN HEADER VERT 50POS 2MM
159150-6002 is a Rectangular Connectors - Headers, Male Pins manufactured by 3M. CONN HEADER VERT 50POS 2MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating 150V, contact material Copper Alloy.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | 0.142" (3.61mm) |
| Contact Length - Post | 0.112" (2.84mm) |
| Overall Contact Length | - |
| Insulation Height | 0.210" (5.33mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | Keying Slot |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1.25A |
| Voltage Rating | 150V |
Submit your RFQ for 159150-6002 and get a quote within 24 hours.
