AUTOMOTIVE N-CHANNEL 20 V (D-S)

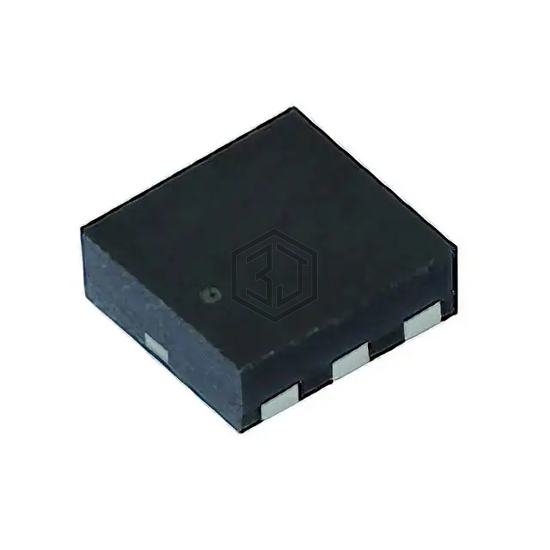

SQA410CEJW-T1_GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. AUTOMOTIVE N-CHANNEL 20 V (D-S). Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SC-70-6 Dual.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 7.8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 28mOhm @ 5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 525 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 13.6W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® SC-70-6 Dual |
| Package / Case | PowerPAK® SC-70-6 Dual |
Submit your RFQ for SQA410CEJW-T1_GE3 and get a quote within 24 hours.
