N-CHANNEL 30-V (D-S) MOSFET POWE

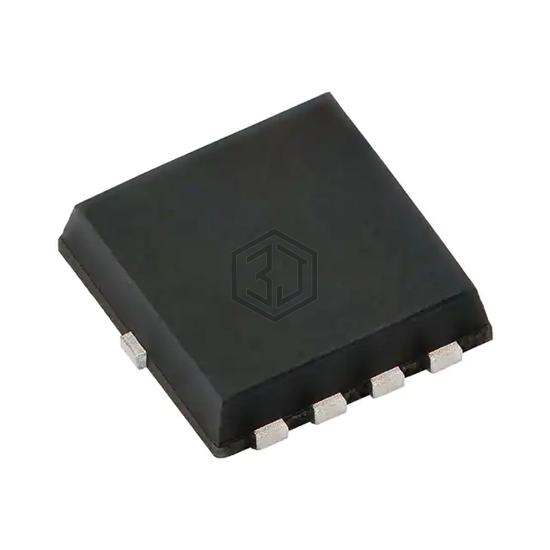

SISA10BDN-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. N-CHANNEL 30-V (D-S) MOSFET POWE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® 1212-8.
In Stock: 6,050
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 26A (Ta), 104A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3.6mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 36.2 nC @ 10 V |
| Vgs (Max) | +20V, -16V |
| Input Capacitance (Ciss) (Max) @ Vds | 1710 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.8W (Ta), 63W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® 1212-8 |
| Package / Case | PowerPAK® 1212-8 |
Submit your RFQ for SISA10BDN-T1-GE3 and get a quote within 24 hours.
