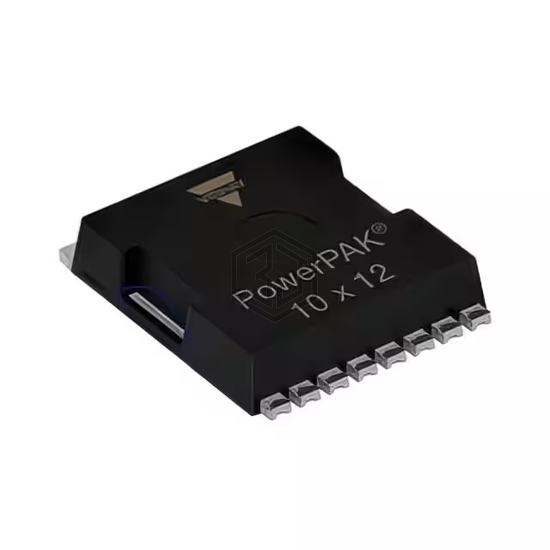

E SERIES POWER MOSFET POWERPAK 1
SIHK045N60E-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. E SERIES POWER MOSFET POWERPAK 1. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerBSFN.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 48A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 49mOhm @ 17A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 98 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 4013 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 278W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK®10 x 12 |
| Package / Case | 8-PowerBSFN |
Submit your RFQ for SIHK045N60E-T1-GE3 and get a quote within 24 hours.
