EF SERIES POWER MOSFET WITH FAST

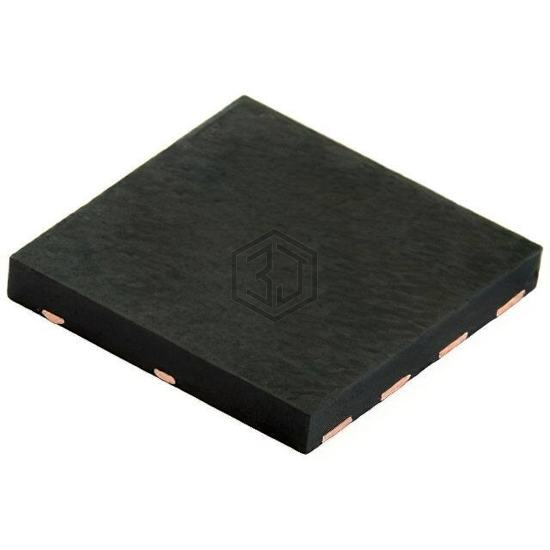

SIHH250N60EF-T1GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. EF SERIES POWER MOSFET WITH FAST. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 13A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 250mOhm @ 5.5A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 23 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 915 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 89W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® 8 x 8 |
| Package / Case | 8-PowerTDFN |
Submit your RFQ for SIHH250N60EF-T1GE3 and get a quote within 24 hours.
