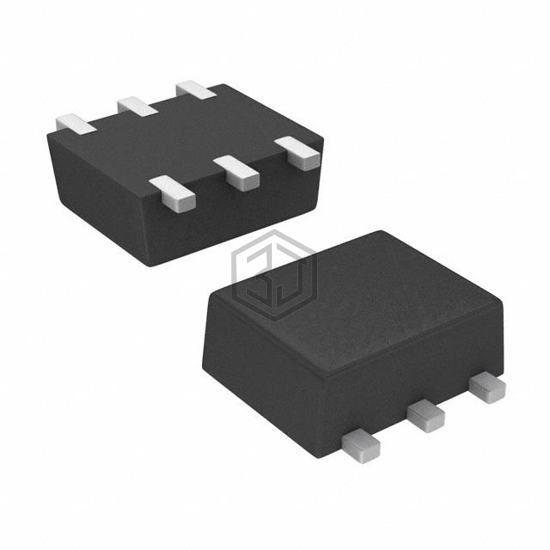

MOSFET N-CH 30V 1.2A SC89-6
SI1070X-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 30V 1.2A SC89-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-563, SOT-666.
In Stock: 2,999
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 1.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 99mOhm @ 1.2A, 4.5V |
| Vgs(th) (Max) @ Id | 1.55V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8.3 nC @ 5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 385 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 236mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-89 (SOT-563F) |
| Package / Case | SOT-563, SOT-666 |
