FIXED IND 100UH 147MA 3.25OHM SM

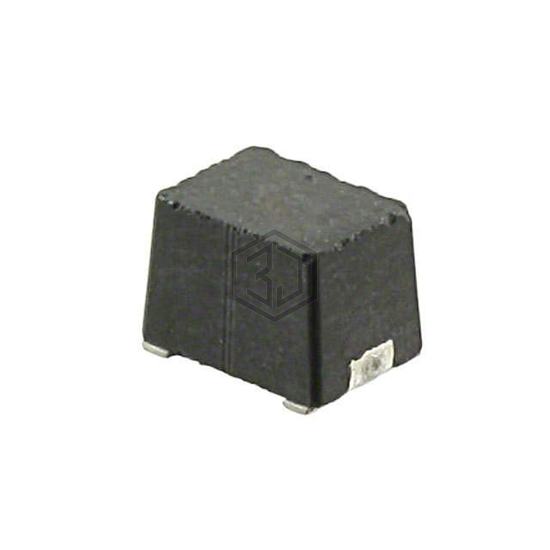

ISC1812ER101J is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 100UH 147MA 3.25OHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 1812 (4532 Metric), current rating (amps) 147 mA.
In Stock: 669
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 147 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 3.25Ohm Max |
| Q @ Freq | 40 @ 796kHz |
| Frequency - Self Resonant | 7MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 796 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
Submit your RFQ for ISC1812ER101J and get a quote within 24 hours.
