FIXED IND 4.7UH 220MA 1.25OHM SM

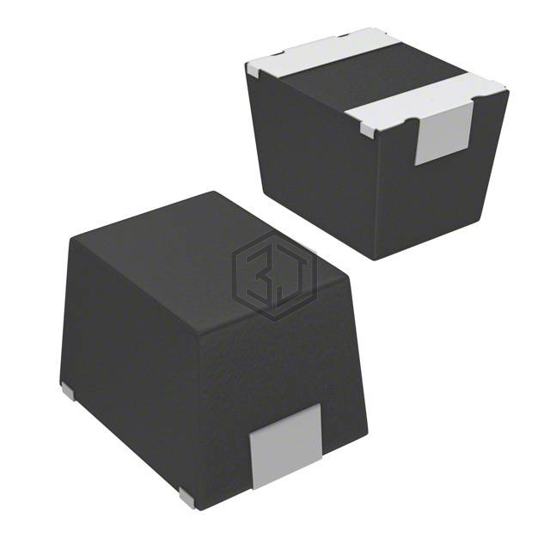

ISC1210ER4R7K is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 4.7UH 220MA 1.25OHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 1210 (3225 Metric), current rating (amps) 220 mA.
In Stock: 4,195
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron Powder |
| Inductance | 4.7 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 220 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.25Ohm Max |
| Q @ Freq | 30 @ 7.96MHz |
| Frequency - Self Resonant | 52MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.49mm) |
| Height - Seated (Max) | 0.095" (2.41mm) |
Submit your RFQ for ISC1210ER4R7K and get a quote within 24 hours.
