FIXED IND 47UH 100MA 8 OHM SMD

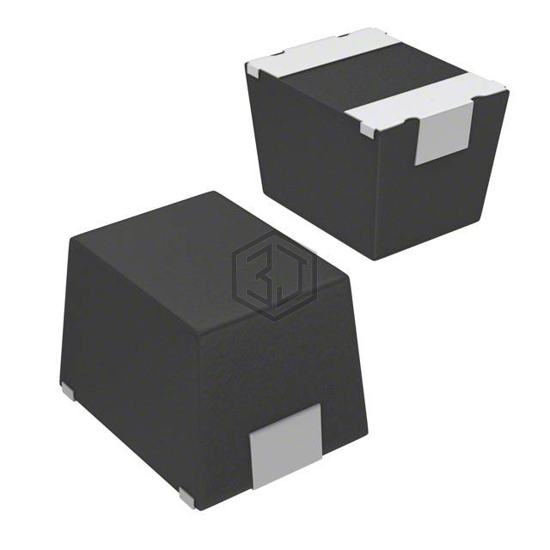

ISC1210ER470K is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 47UH 100MA 8 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 1210 (3225 Metric), current rating (amps) 100 mA.
In Stock: 675
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron Powder |
| Inductance | 47 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 100 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 8Ohm Max |
| Q @ Freq | 30 @ 2.52MHz |
| Frequency - Self Resonant | 13MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.49mm) |
| Height - Seated (Max) | 0.095" (2.41mm) |
Submit your RFQ for ISC1210ER470K and get a quote within 24 hours.
