IHSR-6767GZ-5A .22 20% ER E3

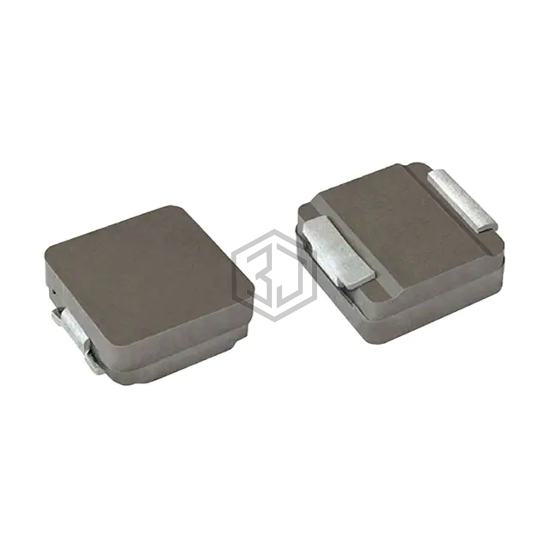

IHSR6767GZERR22M5A is a Fixed Inductors manufactured by Vishay Dale. IHSR-6767GZ-5A .22 20% ER E3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 141 A.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 220 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 141 A |
| Current - Saturation (Isat) | 155A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.24mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.709" L x 0.675" W (18.00mm x 17.15mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
Submit your RFQ for IHSR6767GZERR22M5A and get a quote within 24 hours.
