FIXED IND 75UH 12A 32.35 MOHM

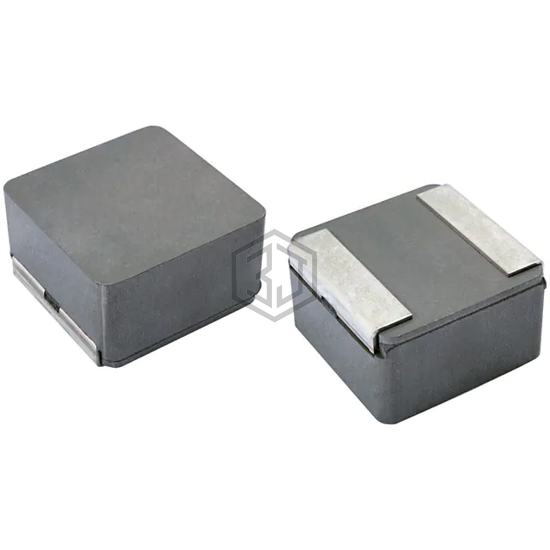

IHLP8787MZER750M5A is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 75UH 12A 32.35 MOHM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 12 A.
In Stock: 80
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 75 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 12 A |
| Current - Saturation (Isat) | 12A |
| Shielding | Shielded |
| DC Resistance (DCR) | 32.35mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 2.01MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.885" L x 0.866" W (22.48mm x 22.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
Submit your RFQ for IHLP8787MZER750M5A and get a quote within 24 hours.
