FIXED IND 470NH 64.5A 0.87 MOHM

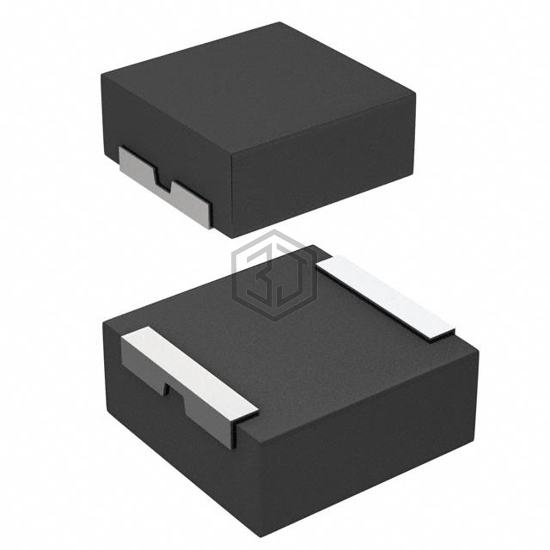

IHLP6767GZERR47M11 is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 470NH 64.5A 0.87 MOHM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 64.5 A.
In Stock: 98
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 64.5 A |
| Current - Saturation (Isat) | 62A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.87mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 60MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.675" L x 0.675" W (17.15mm x 17.15mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
