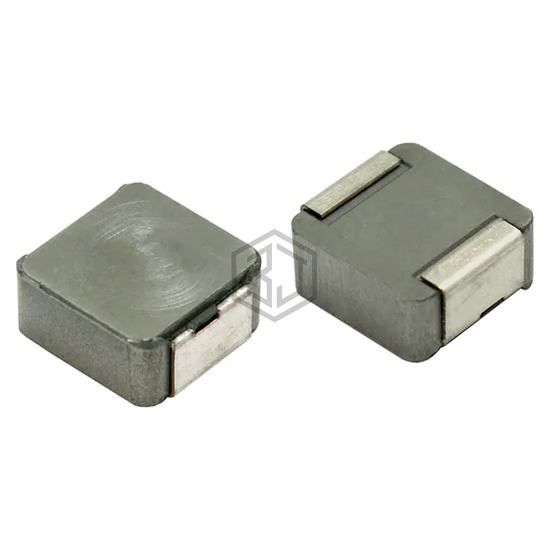

IHLP-3232DZ-1A 22 20% ER E3
IHLP3232DZER220M1A is a Fixed Inductors manufactured by Vishay Dale. IHLP-3232DZ-1A 22 20% ER E3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 4.3 A.
In Stock: 392
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.3 A |
| Current - Saturation (Isat) | 3.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 89mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 8.2MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.340" L x 0.322" W (8.64mm x 8.18mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for IHLP3232DZER220M1A and get a quote within 24 hours.
