FIXED IND 3.3UH 7.2A 27.4MOHM SM

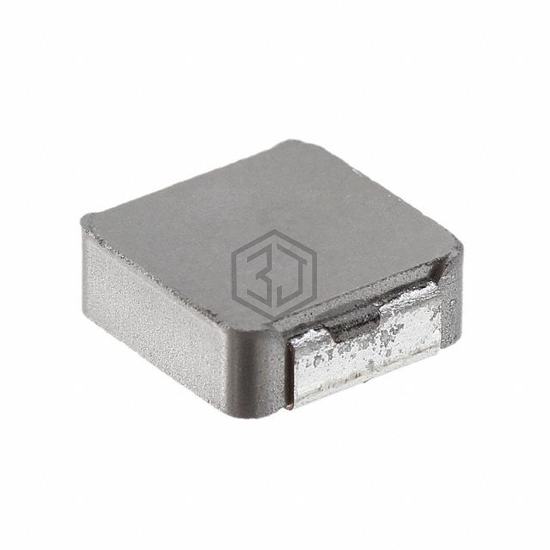

IHLP3232CZER3R3M01 is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 3.3UH 7.2A 27.4MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 7.2 A.
In Stock: 1,989
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 7.2 A |
| Current - Saturation (Isat) | 12A |
| Shielding | Shielded |
| DC Resistance (DCR) | 27.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 27MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.340" L x 0.322" W (8.64mm x 8.18mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for IHLP3232CZER3R3M01 and get a quote within 24 hours.
