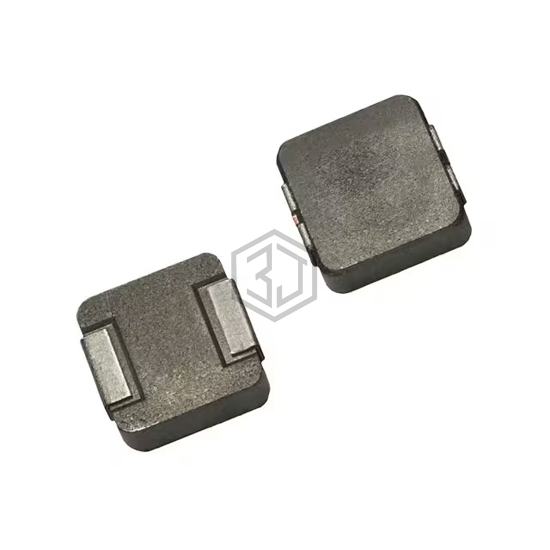

IHLP-2020BZ-51 2.2 20% ER E3
IHLP2020BZER2R2M51 is a Fixed Inductors manufactured by Vishay Dale. IHLP-2020BZ-51 2.2 20% ER E3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 5.1 A.
In Stock: 2,632
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.1 A |
| Current - Saturation (Isat) | 6.4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 47.6mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 43.1MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.216" L x 0.204" W (5.49mm x 5.18mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for IHLP2020BZER2R2M51 and get a quote within 24 hours.
