FIXED IND 820NH 4.9A 26 MOHM SMD

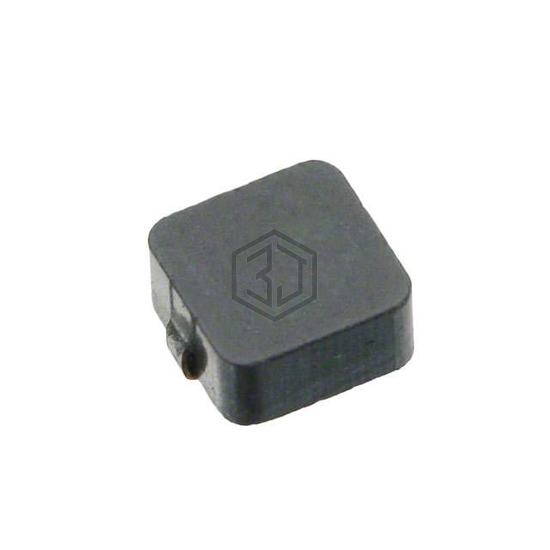

IHLP1212AEERR82M11 is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 820NH 4.9A 26 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 4.9 A.
In Stock: 6,461
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 820 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.9 A |
| Current - Saturation (Isat) | 5.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 26mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.142" L x 0.118" W (3.60mm x 3.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
