FIXED IND 220NH 9.3A 11.4MOHM SM

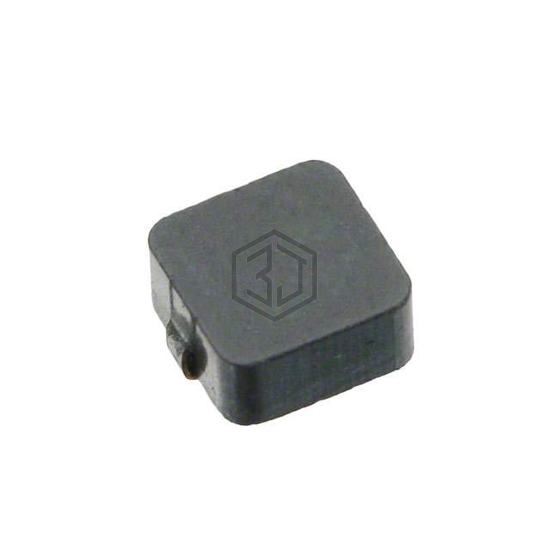

IHLP1212ABERR22M11 is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 220NH 9.3A 11.4MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 9.3 A.
In Stock: 789
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 220 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 9.3 A |
| Current - Saturation (Isat) | 9.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 11.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 220MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.144" L x 0.118" W (3.65mm x 3.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for IHLP1212ABERR22M11 and get a quote within 24 hours.
