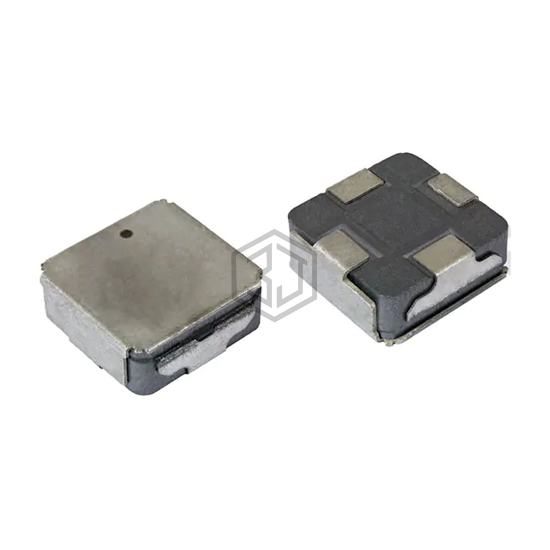

IHLE-4040DD-5A 15 20% ER E3
IHLE4040DDEW150M5A is a Fixed Inductors manufactured by Vishay Dale. IHLE-4040DD-5A 15 20% ER E3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 5.1 A.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.1 A |
| Current - Saturation (Isat) | 7.7A |
| Shielding | Shielded |
| DC Resistance (DCR) | 50.29mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 10.4MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.430" L x 0.426" W (10.92mm x 10.82mm) |
| Height - Seated (Max) | 0.174" (4.42mm) |
Submit your RFQ for IHLE4040DDEW150M5A and get a quote within 24 hours.
