FIXED IND 2.2UH 15A 8.76MOHM SMD

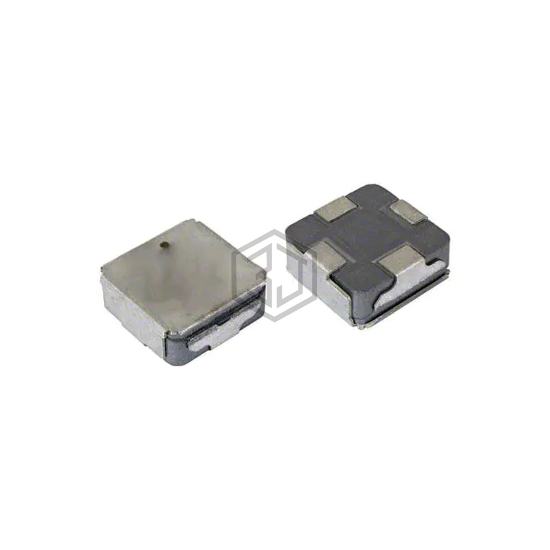

IHLE4040DDER2R2M5A is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 2.2UH 15A 8.76MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, 4 Lead, current rating (amps) 15 A.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 15 A |
| Current - Saturation (Isat) | 12A |
| Shielding | Shielded |
| DC Resistance (DCR) | 8.76mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 4 Lead |
| Supplier Device Package | 4040 |
| Size / Dimension | 0.426" L x 0.426" W (10.82mm x 10.82mm) |
| Height - Seated (Max) | 0.169" (4.30mm) |
Submit your RFQ for IHLE4040DDER2R2M5A and get a quote within 24 hours.
