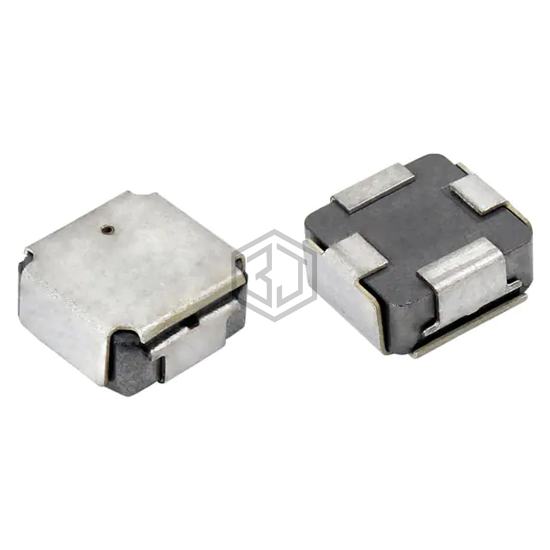

IHLE-2525CD-5A 2.2 20% ER E3
IHLE2525CDER2R2M5A is a Fixed Inductors manufactured by Vishay Dale. IHLE-2525CD-5A 2.2 20% ER E3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, 4 Lead, current rating (amps) 8.1 A.
In Stock: 234
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 8.1 A |
| Current - Saturation (Isat) | 10.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 18.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 31.2MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 4 Lead |
| Supplier Device Package | Nonstandard, 4 Lead |
| Size / Dimension | 0.284" L x 0.280" W (7.21mm x 7.12mm) |
| Height - Seated (Max) | 0.132" (3.35mm) |
Submit your RFQ for IHLE2525CDER2R2M5A and get a quote within 24 hours.
