FIXED IND 15UH 4.2A 66.34MOHM SM

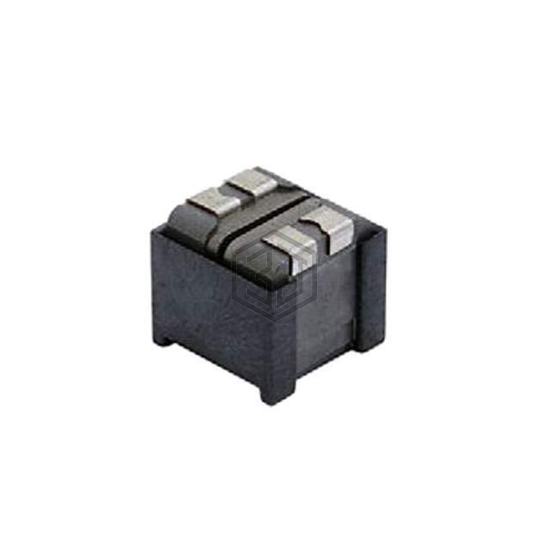

IHLD3232HBER150M5A is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 15UH 4.2A 66.34MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 4.2 A.
In Stock: 182
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.2 A |
| Current - Saturation (Isat) | 3.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 66.34mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 10MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.384" L x 0.379" W (9.75mm x 9.63mm) |
| Height - Seated (Max) | 0.365" (9.27mm) |
Submit your RFQ for IHLD3232HBER150M5A and get a quote within 24 hours.
