FG, IHDM-1107BB-20 .47 20%

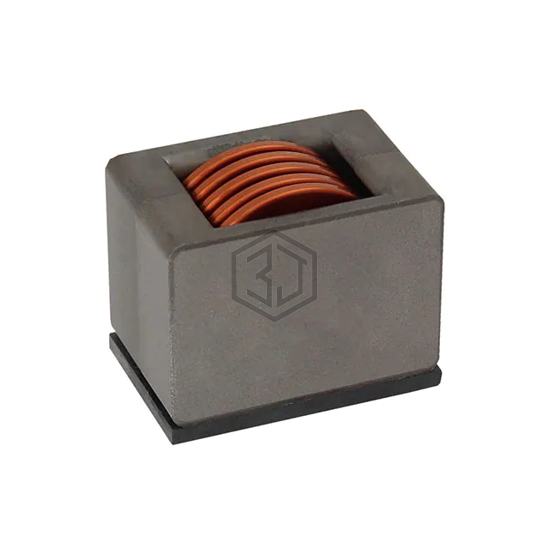

IHDM1107BBEVR47M20 is a Fixed Inductors manufactured by Vishay Dale. FG, IHDM-1107BB-20 .47 20%. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 180°C, package / case Nonstandard, current rating (amps) 128 A.
In Stock: 320
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron Powder |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 128 A |
| Current - Saturation (Isat) | 422A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 217MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 180°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.055" L x 0.705" W (26.80mm x 17.90mm) |
| Height - Seated (Max) | 0.882" (22.40mm) |
Submit your RFQ for IHDM1107BBEVR47M20 and get a quote within 24 hours.
