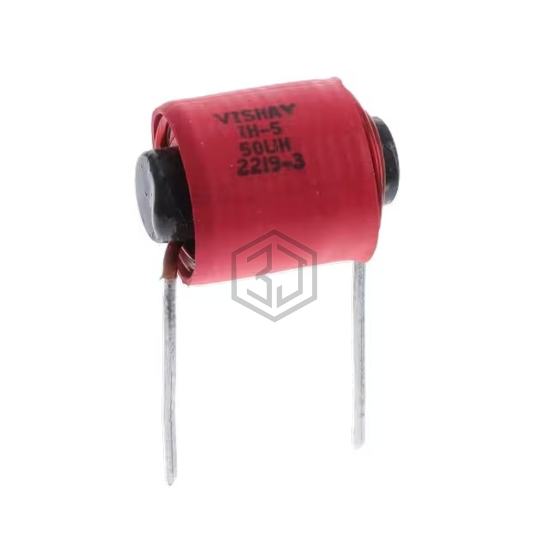

FIXED IND 50UH 8A 30 MOHM TH
IH05BQ500K is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 50UH 8A 30 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Radial, Horizontal Cylinder, current rating (amps) 8 A.
In Stock: 930
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 50 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 8 A |
| Current - Saturation (Isat) | 10A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 30mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.840" Dia x 1.125" L (21.34mm x 28.58mm) |
| Height - Seated (Max) | - |
Submit your RFQ for IH05BQ500K and get a quote within 24 hours.
