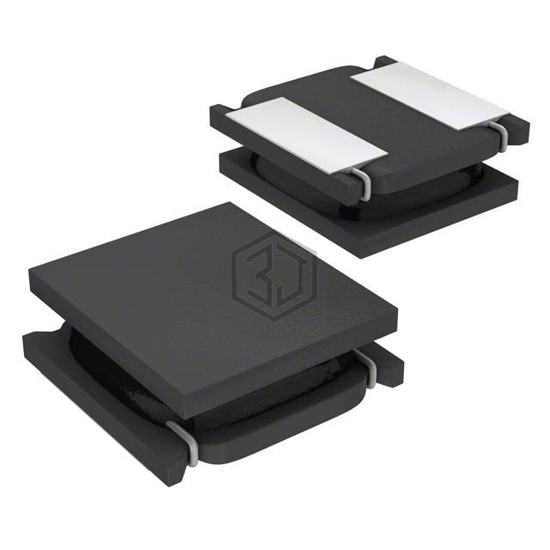

FIXED IND 10UH 800MA 340MOHM SMD
IFSC1111AZER100M01 is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 10UH 800MA 340MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 800 mA.
In Stock: 1,209
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | 520mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 340mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.117" L x 0.117" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Submit your RFQ for IFSC1111AZER100M01 and get a quote within 24 hours.
