FIXED IND 27NH 300MA 700MOHM SMD

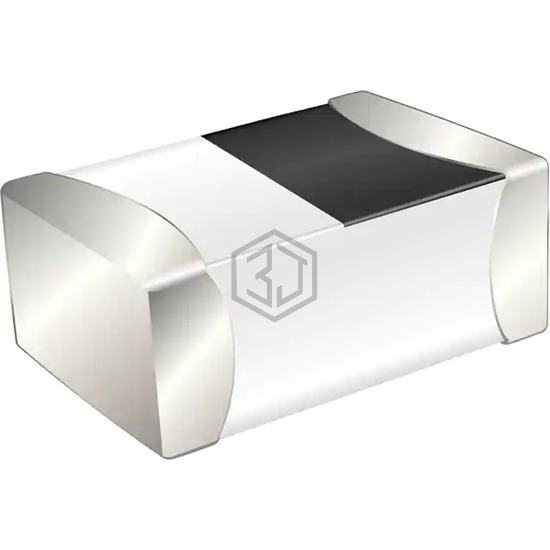

LMCI1005-27NJT is a Fixed Inductors manufactured by Venkel. FIXED IND 27NH 300MA 700MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0402 (1005 Metric), current rating (amps) 300 mA.
In Stock: 60,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Multilayer |
| Material - Core | Ceramic |
| Inductance | 27 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 300 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 700mOhm |
| Q @ Freq | 8 @ 100MHz |
| Frequency - Self Resonant | 1.6GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
Submit your RFQ for LMCI1005-27NJT and get a quote within 24 hours.
