Unictron Technologies Corporation

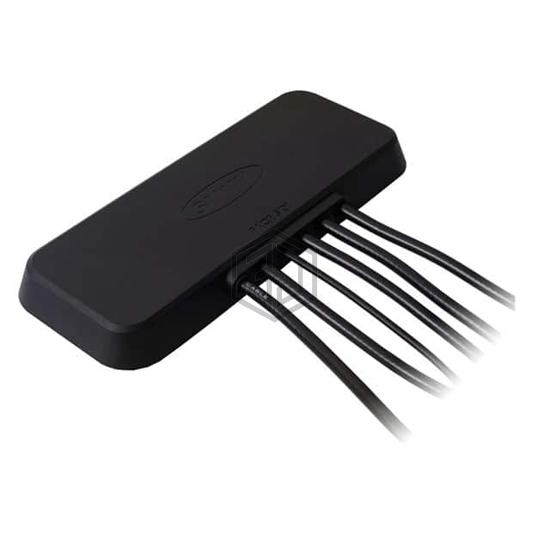

6 IN 1 COMBO EXTERNAL ANTENNA
MT-15B-AS-BLLWWW01 is a RF Antennas manufactured by Unictron Technologies Corporation. 6 IN 1 COMBO EXTERNAL ANTENNA. Key specifications: mounting type Adhesive, termination SMA Male, ingress protection IP67, frequency range 698MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5.15GHz.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz, 3.55GHz, 5.5375GHz, 5.8GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5.15GHz |
| Antenna Type | Module |
| Number of Bands | 13 |
| VSWR | 2, 3 |
| Return Loss | -6dB, -10dB |
| Gain | 2.4dBi, 2.74dBi, 1.21dBi, 1.21dBi, 1.44dBi, 3.57dBi, 4.53dBi, 3.26dBi, 2.02dBi, 3.07dBi, 2.98dBi, 4.94dBi, 4.78dBi, 3.62dBi, 5.31dBi, 3.93dBi, 3.1dBi |
| Power - Max | - |
| Features | - |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Height (Max) | 0.606" (15.40mm) |
| Applications | 5G, DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
Submit your RFQ for MT-15B-AS-BLLWWW01 and get a quote within 24 hours.
