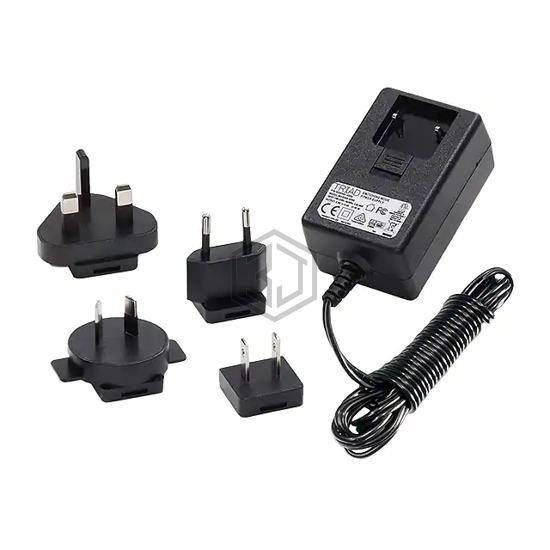

AC/DC WALL MOUNT ADAPTER 9V 23W
WSX090-2500 is a AC DC Desktop, Wall Adapters manufactured by Triad Magnetics. AC/DC WALL MOUNT ADAPTER 9V 23W. Key specifications: operating temperature 0°C ~ 45°C, voltage - input 90 ~ 264 VAC, current - output (max) 2.5A, size / dimension 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm).
In Stock: 75
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Wall Mount (Class II) |
| Input Type | Multi-Blade (Included) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 9V |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 23 W |
| No Load Power Consumption | 100mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 45°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm |
| Cord Length | 72" (1.83m) |
| Input Connector | Multi-Blade |
| Features | - |
| Size / Dimension | 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm) |
| Approval Agency | CE, cETLus, FCC, GS, RCM |
| Standard Number | - |
Submit your RFQ for WSX090-2500 and get a quote within 24 hours.
