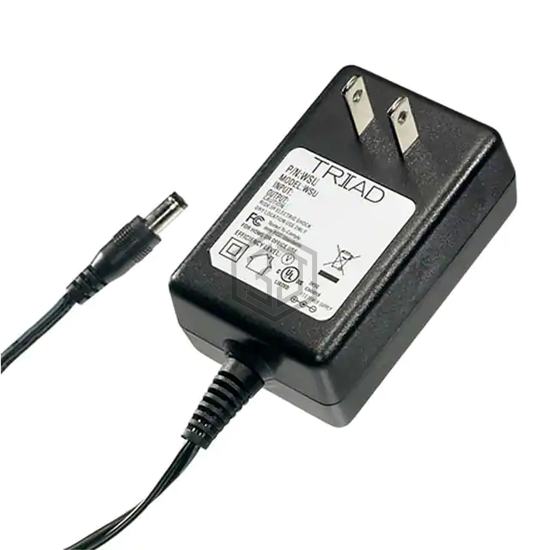

AC/DC WALL MNT ADAPT 13.5V 8.4W
WSU135-0620 is a AC DC Desktop, Wall Adapters manufactured by Triad Magnetics. AC/DC WALL MNT ADAPT 13.5V 8.4W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 620mA, size / dimension 2.80" L x 1.69" W x 1.18" H (71.0mm x 42.8mm x 30.0mm).
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | North America |
| Form | Wall Mount (Class II) |
| Input Type | Fixed Blade |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 13.5V |
| Current - Output (Max) | 620mA |
| Power (Watts) | 8.4 W |
| No Load Power Consumption | 100mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm |
| Cord Length | 60" (1.52m) |
| Input Connector | NEMA 1-15P |
| Features | - |
| Size / Dimension | 2.80" L x 1.69" W x 1.18" H (71.0mm x 42.8mm x 30.0mm) |
| Approval Agency | cETLus |
| Standard Number | - |
Submit your RFQ for WSU135-0620 and get a quote within 24 hours.
