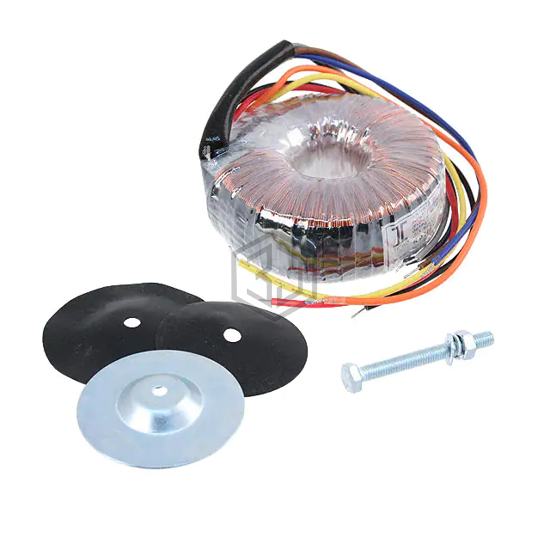

VPT48-10400 - Triad Magnetics - Power Transformers

VPT48-10400

Triad Magnetics

PWR XFMR TORO 500VA CHAS MT

VPT48-10400 is a Power Transformers manufactured by Triad Magnetics. PWR XFMR TORO 500VA CHAS MT. Key specifications: mounting type Chassis Mount, current - output (max) Parallel 20.8A, Series 10.4A, size / dimension 140.00mm Dia x 60.00mm W, termination style Wire Leads.

In Stock: 123

Product Attributes

AttributeValue
Product StatusActive
TypeToroidal
Voltage - Primary115V, 230V
Voltage - Secondary (Full Load)Parallel 24V, Series 48V
Current - Output (Max)Parallel 20.8A, Series 10.4A
Primary Winding(s)Dual
Secondary Winding(s)Dual
Center TapNo
Power - Max500VA
Mounting TypeChassis Mount
Termination StyleWire Leads
Size / Dimension140.00mm Dia x 60.00mm W
Height - Seated (Max)66.0mm
Voltage - Isolation4000Vrms
Weight9.3 lbs (4.2 kg)

Frequently Asked Questions

VPT48-10400 is a Power Transformers manufactured by Triad Magnetics. PWR XFMR TORO 500VA CHAS MT

The mounting type of VPT48-10400 is Chassis Mount.

The current rating of VPT48-10400 is Parallel 20.8A, Series 10.4A.

The size of VPT48-10400 is 140.00mm Dia x 60.00mm W.
