Toshiba Semiconductor and Storage

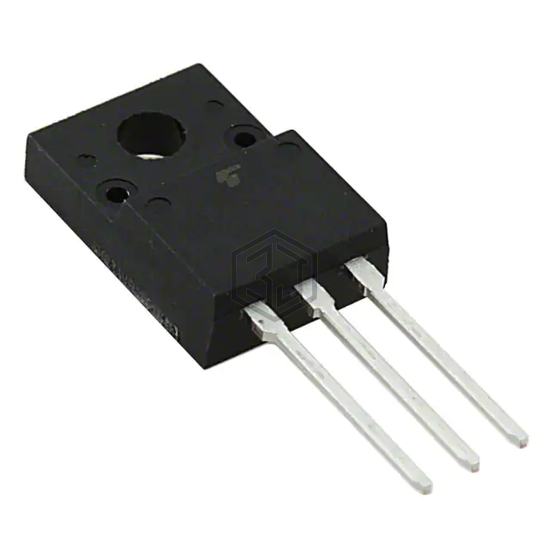

MOSFET N-CH 600V 2.5A TO220SIS
TK3A60DA(Q,M) is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 600V 2.5A TO220SIS. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 2.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2.8Ohm @ 1.3A, 10V |
| Vgs(th) (Max) @ Id | 4.4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 9 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 380 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 30W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220SIS |
| Package / Case | TO-220-3 Full Pack |
Submit your RFQ for TK3A60DA(Q,M) and get a quote within 24 hours.
