Toshiba Semiconductor and Storage
IC D-TYPE POS TRG SNGL 8SSOP

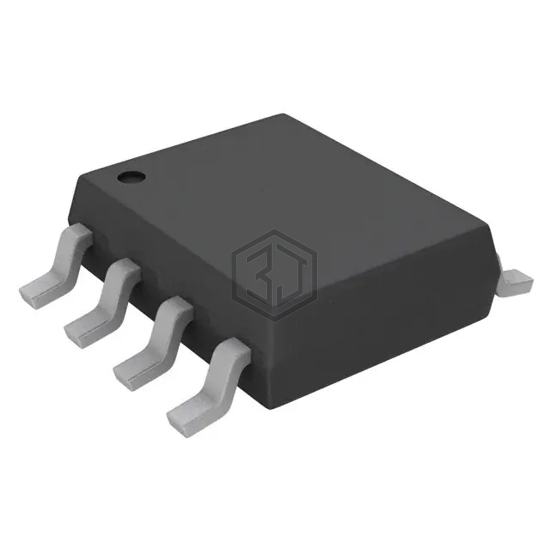

TC7WH74FU(TE12L) is a Logic - Flip Flops manufactured by Toshiba Semiconductor and Storage. IC D-TYPE POS TRG SNGL 8SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2V ~ 5.5V, package / case 8-TSSOP, 8-MSOP (0.110", 2.80mm Width).
In Stock: 2,724
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Set(Preset) and Reset |
| Type | D-Type |
| Output Type | Complementary |
| Number of Elements | 1 |
| Number of Bits per Element | 1 |
| Clock Frequency | 115 MHz |
| Max Propagation Delay @ V, Max CL | 9.3ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 8mA, 8mA |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Iq) | 2 µA |
| Input Capacitance | 4 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SSOP |
| Package / Case | 8-TSSOP, 8-MSOP (0.110", 2.80mm Width) |
TC7WH74FU(TE12L) is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74VHC74SJ | Fairchild Semiconductor | IC FF D-TYPE DUAL 1BIT 14SOP | 96% | View |
| MC74VHC74DTR2G | onsemi | IC FF D-TYPE DUAL 1BIT 14TSSOP | 96% | View |
| MC74VHC74DR2G | onsemi | IC FF D-TYPE DUAL 1BIT 14SOIC | 96% | View |
| 74VHC74FT | Toshiba Semiconductor and Storage | IC FF D-TYPE DUAL 1BIT 14TSSOP | 96% | View |
| SN74AHC74QPWRQ1 | Texas Instruments | IC FF D-TYPE DUAL 1BIT 14TSSOP | 93% | View |
| SN74AHC74QDRQ1 | Texas Instruments | IC FF D-TYPE DUAL 1BIT 14SOIC | 93% | View |
Submit your RFQ for TC7WH74FU(TE12L) and get a quote within 24 hours.
