Toshiba Semiconductor and Storage
IC GATE NAND 2CH 2-INP SM8

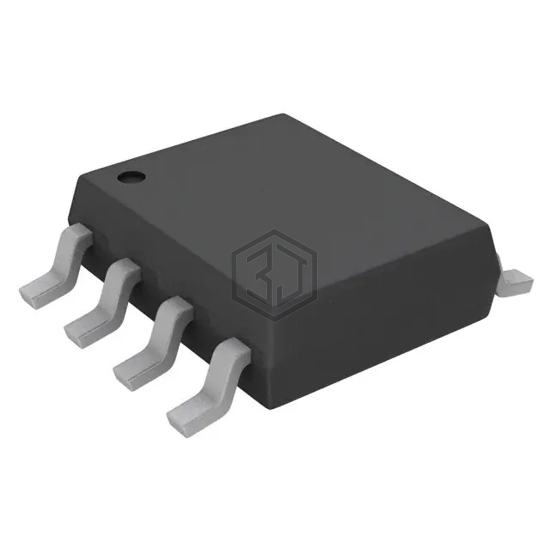

TC7WH00FU(TE12L) is a Logic - Gates and Inverters manufactured by Toshiba Semiconductor and Storage. IC GATE NAND 2CH 2-INP SM8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 5.5V, package / case 8-TSSOP, 8-MSOP (0.110", 2.80mm Width).
In Stock: 3,512
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.5V |
| Logic Level - High | 1.5V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SSOP |
| Package / Case | 8-TSSOP, 8-MSOP (0.110", 2.80mm Width) |
TC7WH00FU(TE12L) is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74AHC1G00DCKTG4 | Texas Instruments | IC GATE NAND 1CH 2-INP SC70-5 | 91% | View |
| SN74AHC1G00DCKRG4 | Texas Instruments | IC GATE NAND 1CH 2-INP SC70-5 | 91% | View |
| NLVVHC1G00DFT1 | onsemi | IC GATE NAND 1CH 2-INP SC88A | 91% | View |
| SN74AHC1G00WDTXRQ1 | Texas Instruments | AUTOMOTIVE, SINGLE TWO-INPUT 2V | 89% | View |
| SN74AHC132PWRG4 | Texas Instruments | IC GATE NAND 4CH 2-INP 14TSSOP | 86% | View |
| SN74AHCT00DRG4 | Texas Instruments | IC GATE NAND 4CH 2-INP 14SOIC | 85% | View |
Submit your RFQ for TC7WH00FU(TE12L) and get a quote within 24 hours.
