Toshiba Semiconductor and Storage

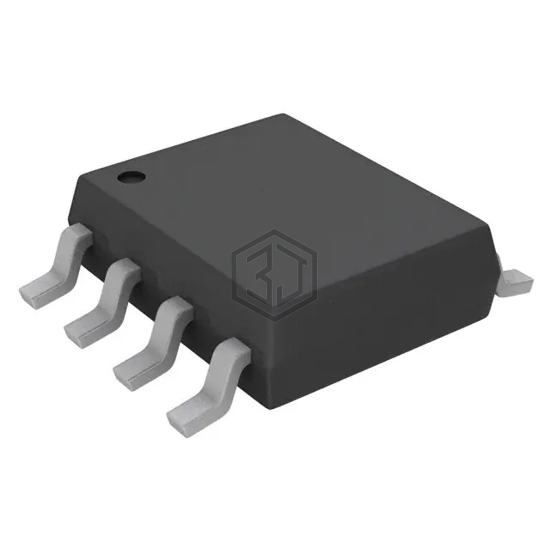

IC INVERTER TRIPLE 74HC04 8-SSOP
TC7W04FU(TE12L) is a Logic - Gates and Inverters manufactured by Toshiba Semiconductor and Storage. IC INVERTER TRIPLE 74HC04 8-SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 6V, package / case 8-TSSOP, 8-MSOP (0.110", 2.80mm Width).
In Stock: 7,705
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | Inverter |
| Number of Circuits | 3 |
| Number of Inputs | 1 |
| Features | - |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Logic Level - Low | 0.5V ~ 1.8V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 13ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SSOP |
| Package / Case | 8-TSSOP, 8-MSOP (0.110", 2.80mm Width) |
TC7W04FU(TE12L) is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC74HC14ADG | onsemi | IC INV SCHMITT 6CH 1-IN 14SOIC | 93% | View |
| MC74HCU04ADR2G | onsemi | IC INVERTER 6CH 1-INP 14SOIC | 91% | View |
| NLV74HC04ADTR2G | onsemi | IC INVERTER 6CH 1-INP 14TSSOP | 90% | View |
| SN74HC04PWR | Texas Instruments | IC INVERTER 6CH 1-INP 14TSSOP | 88% | View |
| MM74HC04MX | onsemi | IC INVERTER 6CH 1-INP 14SOIC | 88% | View |
| MM74HCU04M | onsemi | IC INVERTER 6CH 1-INP 14SOIC | 86% | View |
Submit your RFQ for TC7W04FU(TE12L) and get a quote within 24 hours.
