Toshiba Semiconductor and Storage
IC MTR DRV BIPOLAR 10-34V 24SDIP

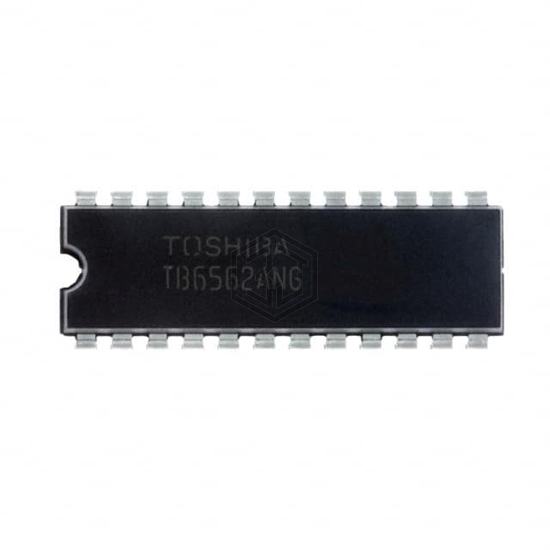

TB6562ANG is a PMIC - Motor Drivers, Controllers manufactured by Toshiba Semiconductor and Storage. IC MTR DRV BIPOLAR 10-34V 24SDIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C (TA), voltage - supply 10V ~ 34V, package / case 24-SDIP (0.300", 7.62mm).
In Stock: 6,855
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | DMOS |
| Step Resolution | 1, 1/2, 1/4 |
| Applications | General Purpose |
| Current - Output | 1.5A |
| Voltage - Supply | 10V ~ 34V |
| Voltage - Load | 10V ~ 34V |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 24-SDIP (0.300", 7.62mm) |
| Supplier Device Package | 24-SDIP |
TB6562ANG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LB11847L-E | onsemi | IC MTRDRV BIPLR 4.75-5.25V 28DIP | 87% | View |
| LB11847-E | onsemi | IC MOTOR DRIVER BIPOLAR 28HDIP | 87% | View |
| SLA7076MPRT | Sanken | IC MTR DRV UNIPOLAR 3-5.5V 23ZIP | 79% | View |
| SLA7071MPRT | Sanken | IC MTR DRV UNIPOLAR 3-5.5V 23ZIP | 79% | View |
| SMA6822MHLF2452 | Sanken | IC MOTOR DRVR 13.5V-16.5V 24SIP | 66% | View |
| SMA6852MZ LF2452 | Sanken | IC MOTOR DRVR 13.5V-16.5V 24SIP | 66% | View |
Submit your RFQ for TB6562ANG and get a quote within 24 hours.
