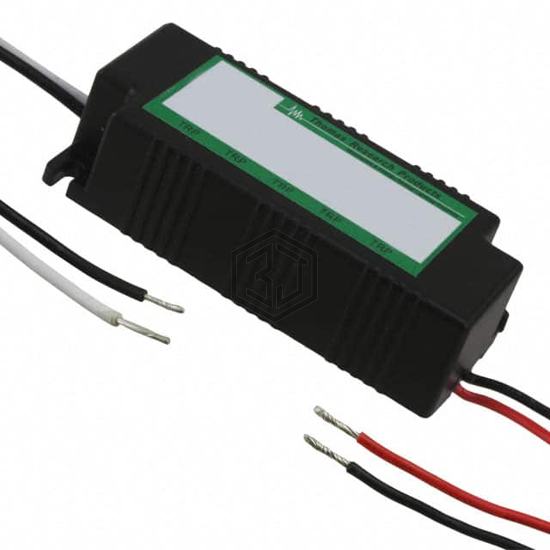

LED DRIVER CC AC/DC 12-24V 700MA
LED20W-24-C0700 is a LED Drivers manufactured by Thomas Research Products. LED DRIVER CC AC/DC 12-24V 700MA. Key specifications: operating temperature -30°C ~ 60°C, voltage - output 12 ~ 24V, current - output (max) 700mA, size / dimension 3.74" L x 1.61" W x 0.98" H (95.0mm x 41.0mm x 25.0mm).
In Stock: 210
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 12 ~ 24V |
| Current - Output (Max) | 700mA |
| Power (Watts) | 20 W |
| Voltage - Isolation | - |
| Dimming | - |
| Features | OCP, OVP, SCP |
| Ratings | IP66 |
| Operating Temperature | -30°C ~ 60°C |
| Efficiency | 87% |
| Termination Style | Wire Leads |
| Size / Dimension | 3.74" L x 1.61" W x 0.98" H (95.0mm x 41.0mm x 25.0mm) |
| Approval Agency | CE, cULus |
| Standard Number | - |
