TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 8A 12V

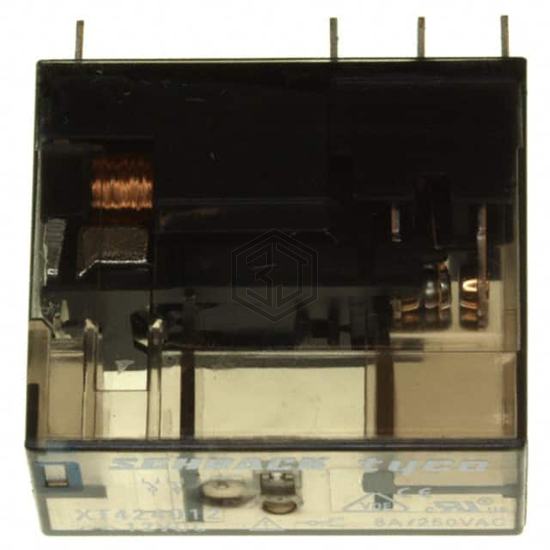

XT424012 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE DPDT 8A 12V. Key specifications: mounting type Socketable, operating temperature -40°C ~ 70°C, contact material Silver Nickel (AgNi), termination style Plug In.
In Stock: 264
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Mounting Type | Socketable |
| Coil Voltage | 12VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 400VAC - Max |
| Coil Current | 33.3 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | Class F |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 9 ms |
| Release Time | 6 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Relay Type | General Purpose |
Submit your RFQ for XT424012 and get a quote within 24 hours.
