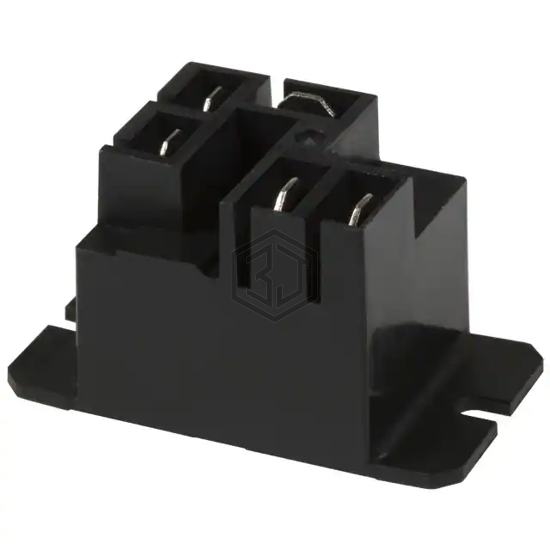

TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 30A 12V
T9AP1D52-12 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE SPST 30A 12V. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 85°C, contact material Silver Cadmium Oxide (AgCdO), termination style Quick Connect - 0.187"/0.250".
In Stock: 257
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 277VAC - Max |
| Coil Current | 83 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.187"/0.250" |
| Seal Rating | - |
| Coil Insulation | Class F |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Operating Temperature | -55°C ~ 85°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
Submit your RFQ for T9AP1D52-12 and get a quote within 24 hours.
