TE Connectivity Potter & Brumfield Relays

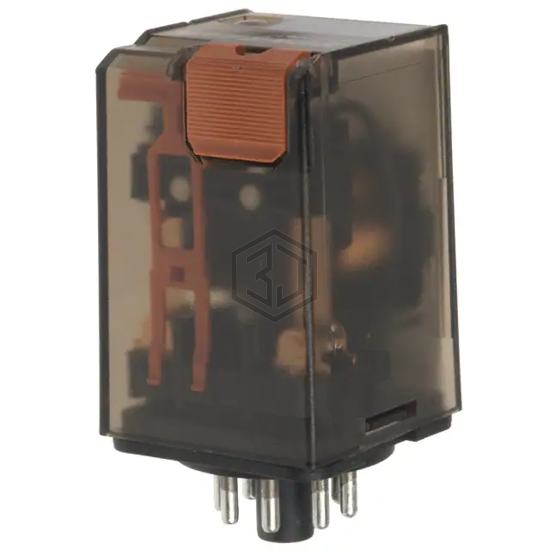

RELAY GEN PURPOSE DPDT 10A 24V
MT221024 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE DPDT 10A 24V. Key specifications: mounting type Socketable, operating temperature -40°C ~ 60°C, contact material Silver Nickel (AgNi), termination style Plug In, 8 Pin (Octal).
In Stock: 150
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 400VAC - Max |
| Coil Current | 50 mA |
| Coil Type | Non Latching |
| Features | Test Button |
| Termination Style | Plug In, 8 Pin (Octal) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 60°C |
| Contact Material | Silver Nickel (AgNi) |
| Relay Type | General Purpose |
Submit your RFQ for MT221024 and get a quote within 24 hours.
