TE Connectivity Measurement Specialties
400 IN 0-10V / 4-20MA IP67 STRIN

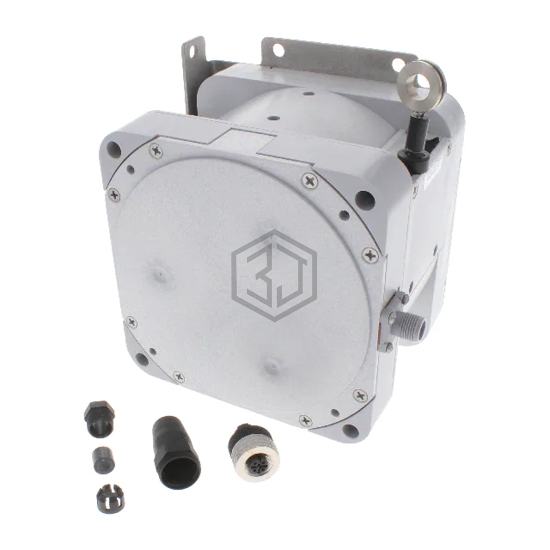

SKD-400-3 is a Position Sensors - Angle, Linear Position Measuring manufactured by TE Connectivity Measurement Specialties. 400 IN 0-10V / 4-20MA IP67 STRIN. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - supply 8V ~ 32V, 12V ~ 40V, package / case Module.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| For Measuring | Linear Position |
| Technology | Resistive |
| Rotation Angle - Electrical, Mechanical | - |
| Linear Range | 0 ~ 10160.00mm (0 ~ 400.00") |
| Output | Analog Voltage, 4 ~ 20mA |
| Output Signal | - |
| Actuator Type | String Potentiometer |
| Linearity | - |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 8V ~ 32V, 12V ~ 40V |
| Mounting Type | Chassis Mount |
| Termination Style | Connector |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | Module |
| Supplier Device Package | - |
Submit your RFQ for SKD-400-3 and get a quote within 24 hours.
