TE Connectivity Passive Product
FIXED IND 5.6NH 1A 150 MOHM SMD

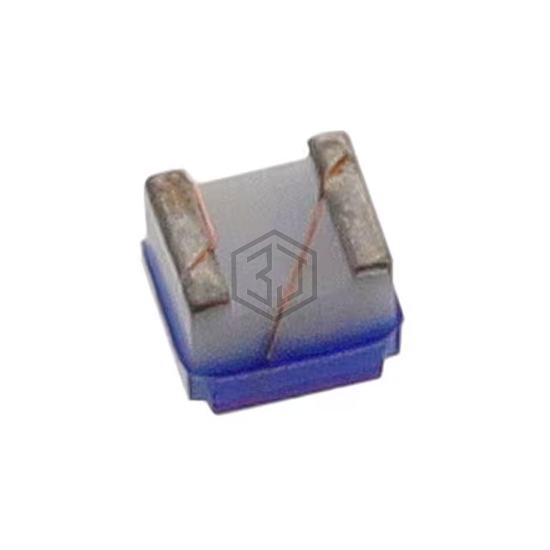

36502C5N6JTDG is a Fixed Inductors manufactured by TE Connectivity Passive Product. FIXED IND 5.6NH 1A 150 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1 A.
In Stock: 3,807
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 5.6 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 150mOhm Max |
| Q @ Freq | 50 @ 1.5GHz |
| Frequency - Self Resonant | 4GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 50 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
Submit your RFQ for 36502C5N6JTDG and get a quote within 24 hours.
