TE Connectivity Passive Product

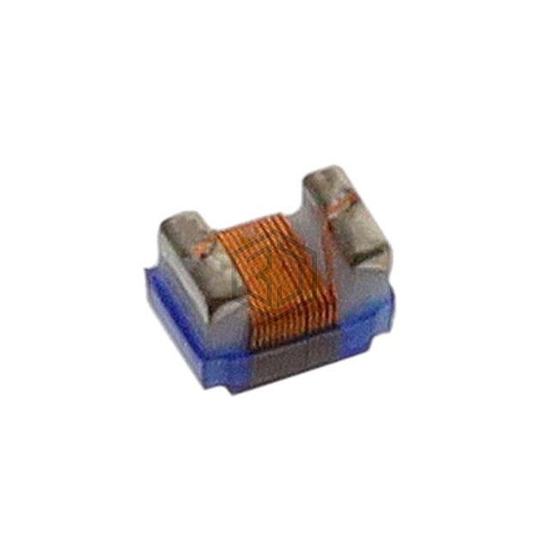

FIXED IND 180NH 400MA 640MOHM SM
36502AR18JTDG is a Fixed Inductors manufactured by TE Connectivity Passive Product. FIXED IND 180NH 400MA 640MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 400 mA.
In Stock: 3,754
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 180 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 640mOhm Max |
| Q @ Freq | 50 @ 250MHz |
| Frequency - Self Resonant | 870MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.090" L x 0.068" W (2.29mm x 1.73mm) |
| Height - Seated (Max) | 0.060" (1.52mm) |
Submit your RFQ for 36502AR18JTDG and get a quote within 24 hours.
