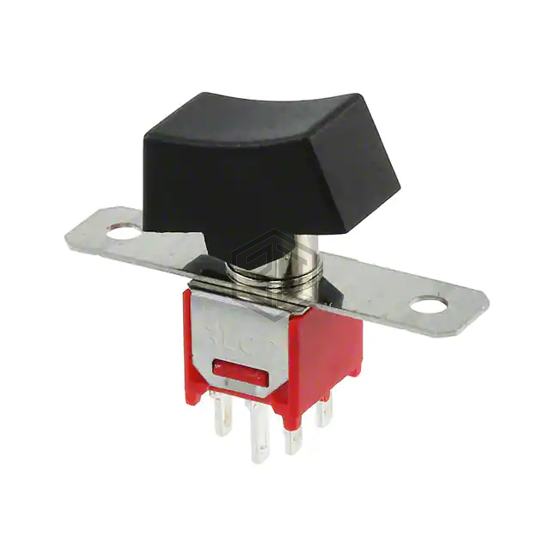

TE Connectivity ALCOSWITCH Switches
SWITCH ROCKER DPDT 3A 120V
RMD1R102M1QES is a Rocker Switches manufactured by TE Connectivity ALCOSWITCH Switches. SWITCH ROCKER DPDT 3A 120V. Key specifications: mounting type Panel Mount, Flange, operating temperature -30°C ~ 85°C, voltage rating - dc 28 V, current rating (amps) 3A (AC/DC).
In Stock: 428
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Flange |
| Circuit | DPDT |
| Switch Function | On-On |
| Current Rating (Amps) | 3A (AC/DC) |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
| Actuator Type | Concave (Curved) |
| Color - Actuator/Cap | Black |
| Actuator Marking | No Marking |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Termination Style | Solder Lug |
| Ingress Protection | - |
| Features | Process Sealed |
| Panel Cutout Dimensions | Rectangular - 15.75mm x 8.89mm |
| Operating Temperature | -30°C ~ 85°C |
Submit your RFQ for RMD1R102M1QES and get a quote within 24 hours.
